Triaxial Cell

Get a Price/Quote

MOQ : 1 Piece

Triaxial Cell Specification

Usage
Industrial

Power Supply
Manual

Mounting Type
Surface mount

Color
Silver

Material
Mild Steel

Features
Durability, Portable

Triaxial Cell Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Chennai

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
Himachal Pradesh, Manipur, Meghalaya, Uttarakhand, Daman and Diu, South India, Central India, North India, East India, Andaman and Nicobar Islands, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Chandigarh, Delhi, Gujarat, Goa, Jammu and Kashmir, Jharkhand, Karnataka, Lakshadweep, Maharashtra, Mizoram, Nagaland, Odisha, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, West Bengal, Dadra and Nagar Haveli, Uttar Pradesh, Haryana, Madhya Pradesh, Kerala, West India, Chhattisgarh, All India

About Triaxial Cell

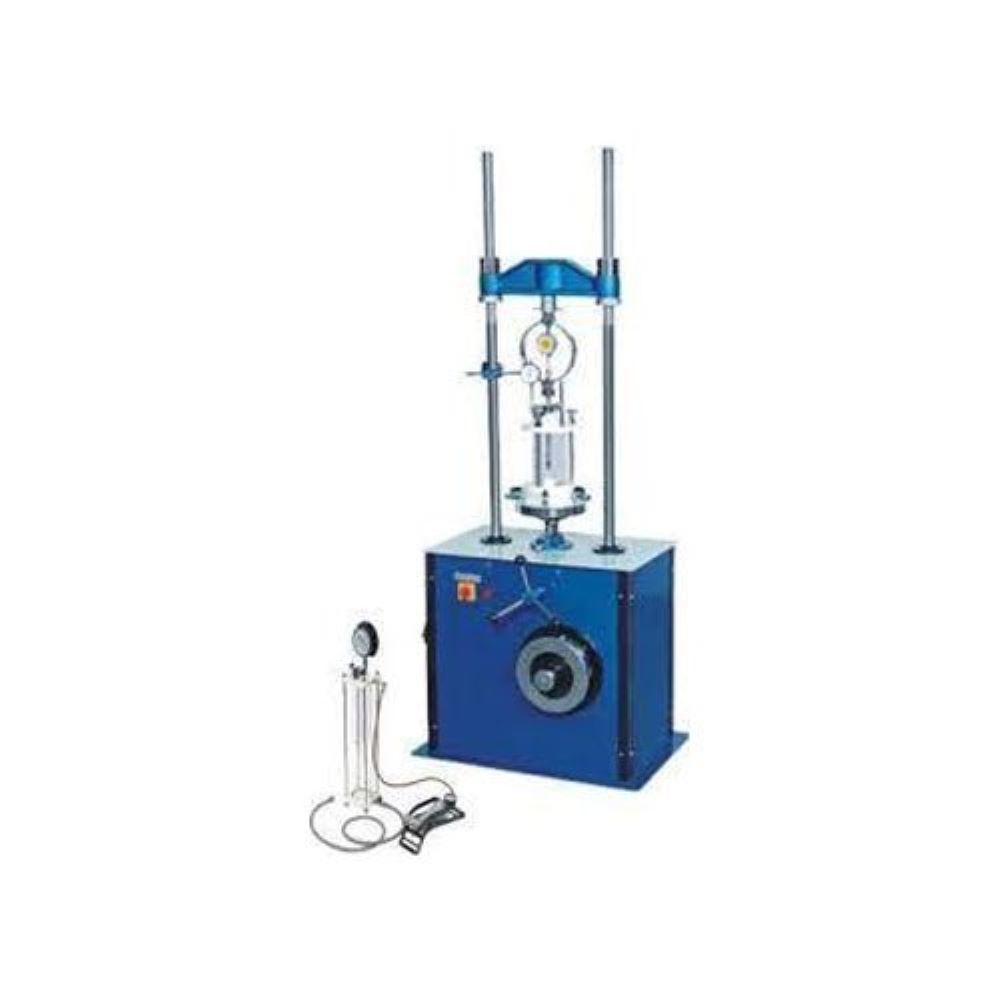

Triaxial Cell

Specifications :

The cell is useful for testing 38 mm dia x 76 mm high soil specimen. Transparent prespex chamber with anvil and loading plunger. The cell is easily opened by releasing four nuts of the tie rods. It is leakproof upto 10 kg/cm. sq. fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration test. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has a dial gauge rest.

Loading pad made of penspex for 38 mm dia specimes.
Pair of plain discs made of penspex 38 MMdia 6 mm thick. Pair of porous stones 38 mm dia x 6 mm thick.
Split sand former for 38 mm dia specimen.
Sheath strecher for 38 mm dia specimen.
One dozen rubber sheaths for 38 mm dia samples.
For synthetic rubber 'O' rings for 38 mm dia specimen.
One plastic drainage tube.
