Laboratory Vane Shear

Name: Laboratory Vane Shear
Brand: TAMILNADU ENGINEERING INSTRUMENTS
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laboratory Vane Shear Specification

Color
Blue

Power Supply
Electric

Display Type
Manual

Usage
Soil Test

Machine Weight
10 Kilograms (kg)

Control Mode
Yes

Laboratory Vane Shear Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Chennai

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India, South India, Bihar, Jharkhand, Haryana, Himachal Pradesh, Maharashtra, Nagaland, Rajasthan, Jammu and Kashmir, Madhya Pradesh, Lakshadweep, Telangana, Tripura, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Sikkim, Tamil Nadu, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Chandigarh, Daman and Diu, Goa, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Laboratory Vane Shear

Laboratory Vane Shear

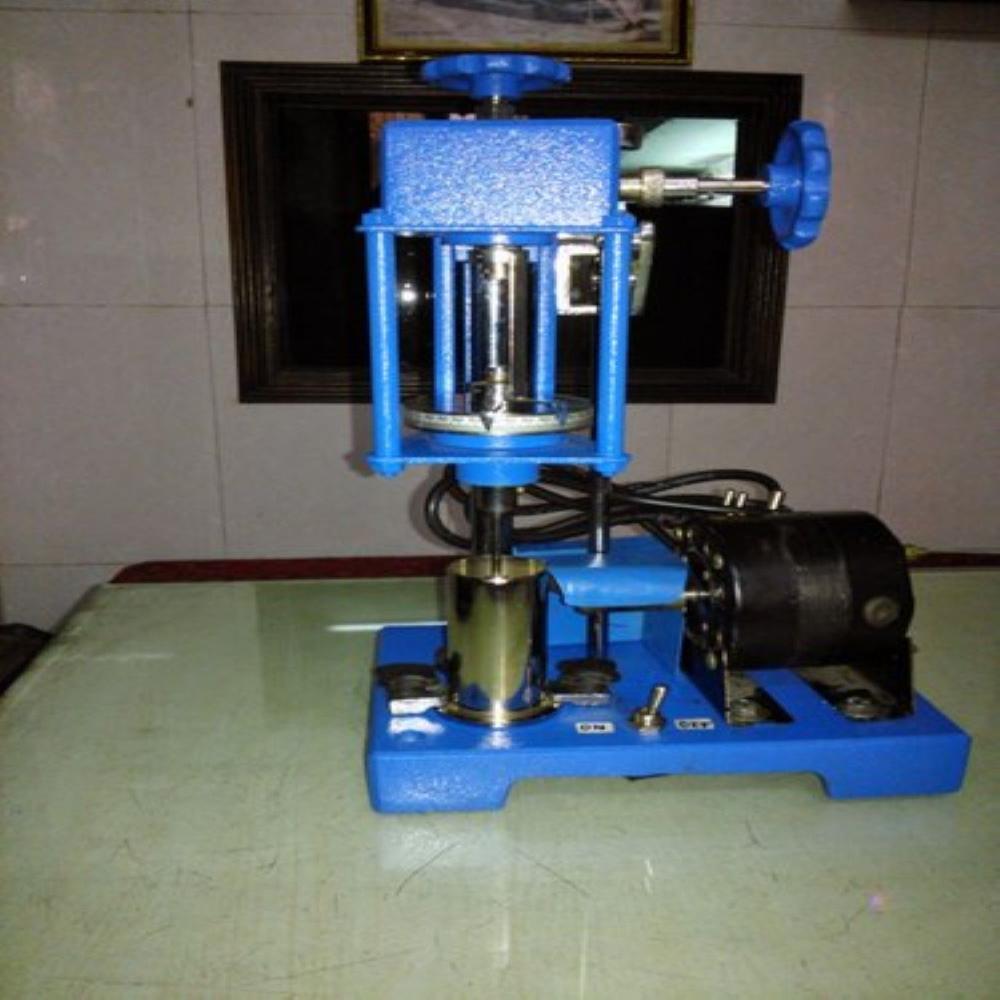

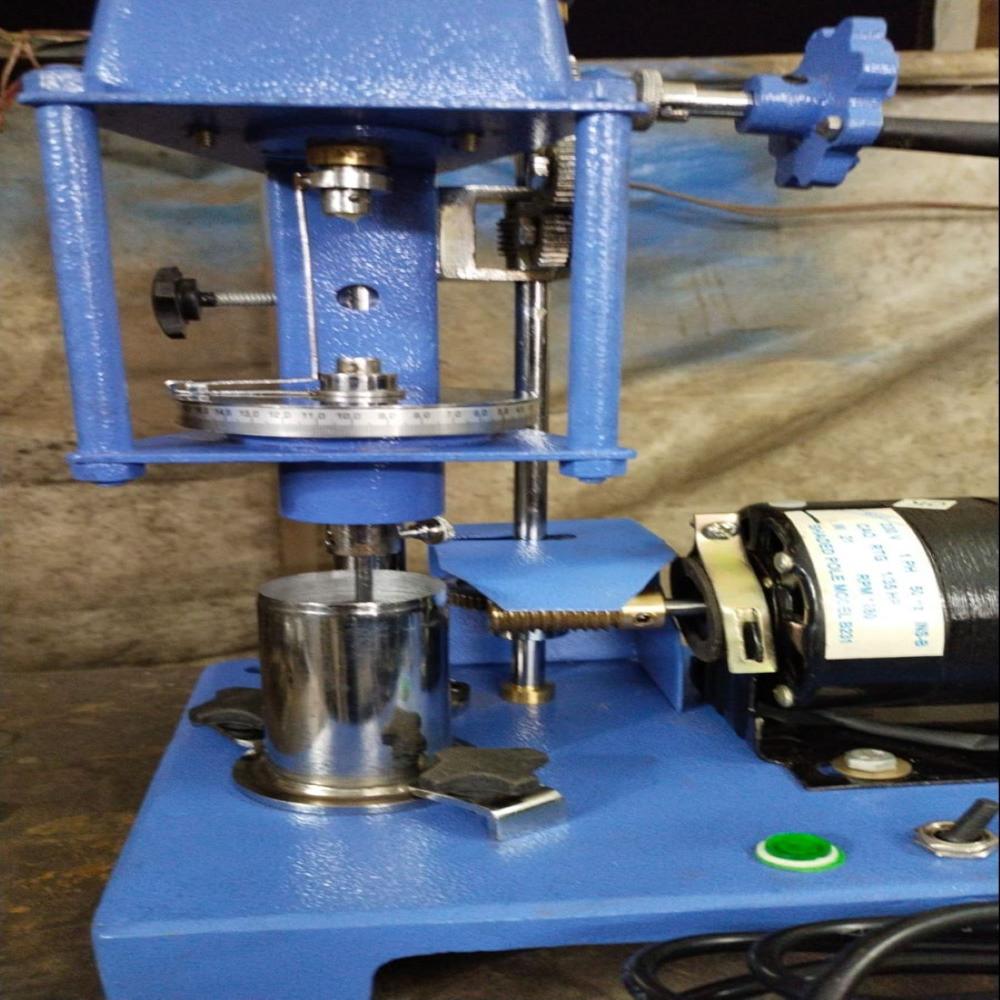

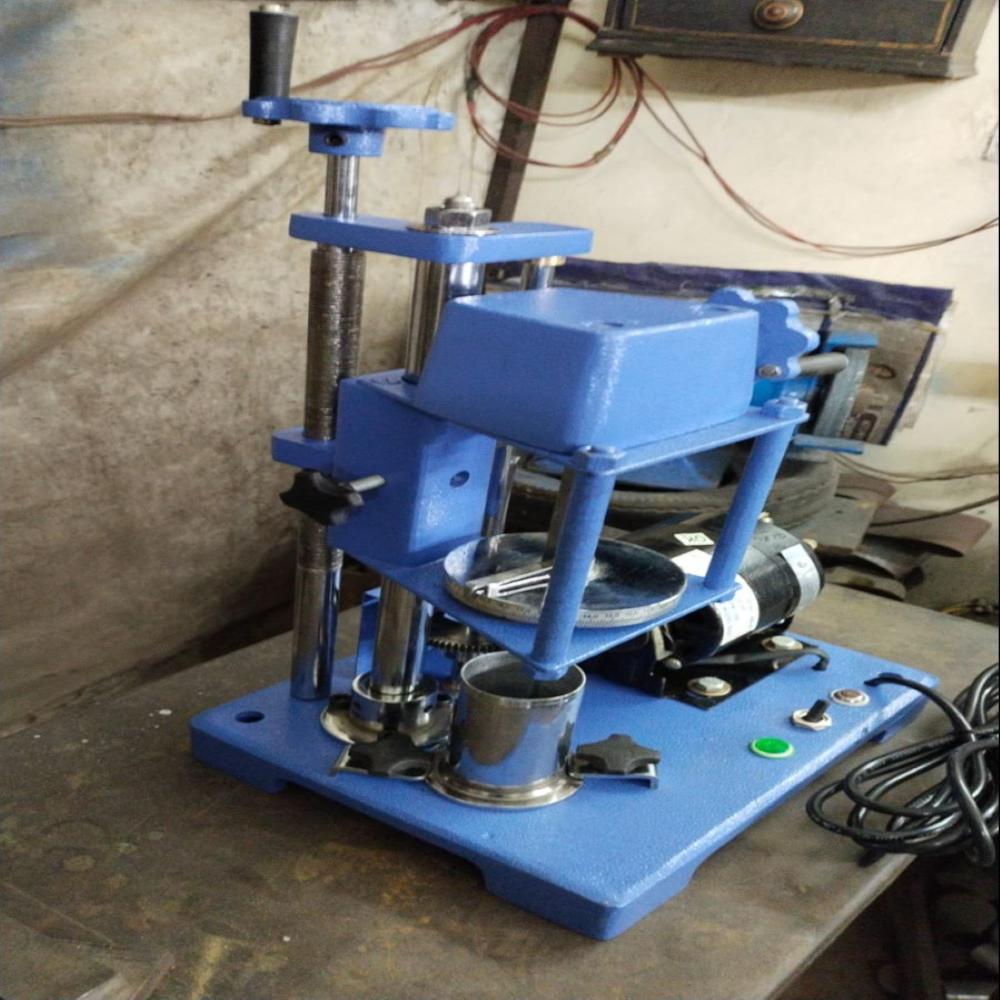

Specifications: Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a electrically which operates a worm gear arrangement during the upper end of a calibrated torsion spring. Vane dia., rod dia., vane size & vane height as per IS specifications. The Vane Shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle of torque on a dial graduated in degrees. The dial reading multiplied by spring factor gives the torque. A container for soil sample is also supplied, and a sampling tube of 38 mm I.D. & 150 mm long can also be used as container. Supplied with set of four springs, one each of approx. 2 kg.cm., 4 kg.cm., 6 kg.cm., and 8 kg.cm. Complete as above in a wooden carrying case.Rate of rotation is 1/60 r.p.m. Suitable for operation on 230 volts, single phase, 50 cycles, A.C.supply.

Compact and Efficient Design

Weighing a mere 10 kilograms, the Laboratory Vane Shear offers exceptional portability and ease of handling without compromising performance. Its compact build suits both large QC labs and smaller testing stations, facilitating soil analysis across multiple environments. The manual display allows straightforward operation, while the blue finish adds aesthetic value to the workspace.

Versatile Applications across Industries

This instrument accommodates a wide market, being an ideal choice for dealers, distributors, exporters, fabricators, importers, manufacturers, retailers, service providers, suppliers, traders, and wholesalers throughout India. Its reliable electric power and user-friendly controls make it a preferred solution for precise soil shear testing.

FAQ's of Laboratory Vane Shear:

Q: How is the Laboratory Vane Shear used in soil testing?

A: The Laboratory Vane Shear is primarily used to measure the shear strength of soil samples in a controlled laboratory setting. By inserting the vane into the soil and applying torque, the apparatus determines the soil's resistance to shearing, which is crucial for geotechnical analysis and construction planning.

Q: What are the main benefits of using this Laboratory Vane Shear apparatus?

A: The main advantages include accurate and reproducible soil shear strength measurements, a lightweight and portable design, easy manual operation, and a reliable electric power supply. These features ensure efficiency and reliability for both routine testing and advanced research.

Q: When is it appropriate to use the Laboratory Vane Shear device?

A: This device is best employed when assessing the undrained shear strength of cohesive soils, especially in quality control, research, and site investigation projects. It is suitable for new construction, soil stability assessments, and laboratory soil studies.

Q: Where can the Laboratory Vane Shear be sourced in India?

A: The Laboratory Vane Shear is widely available across India through various channels including dealers, distributors, exporters, manufacturers, retailers, suppliers, and wholesalers. Many quality lab equipment providers and specialized dealers offer this instrument for immediate procurement.

Q: What is the operating process for the Laboratory Vane Shear device?

A: First, a soil sample is prepared and secured in the apparatus. The vane is inserted into the soil, and torque is applied manually. The device's control mode allows precise manipulation, and the manual display shows the peak force, allowing users to determine the soil's shear strength accurately.

Q: Who benefits most from using this Laboratory Vane Shear?

A: This instrument is highly advantageous for laboratory technicians, geotechnical engineers, quality control professionals, and anyone involved in soil testing. Its accessibility and reliable results make it a vital tool for a broad range of stakeholders in construction, civil engineering, and research sectors.
