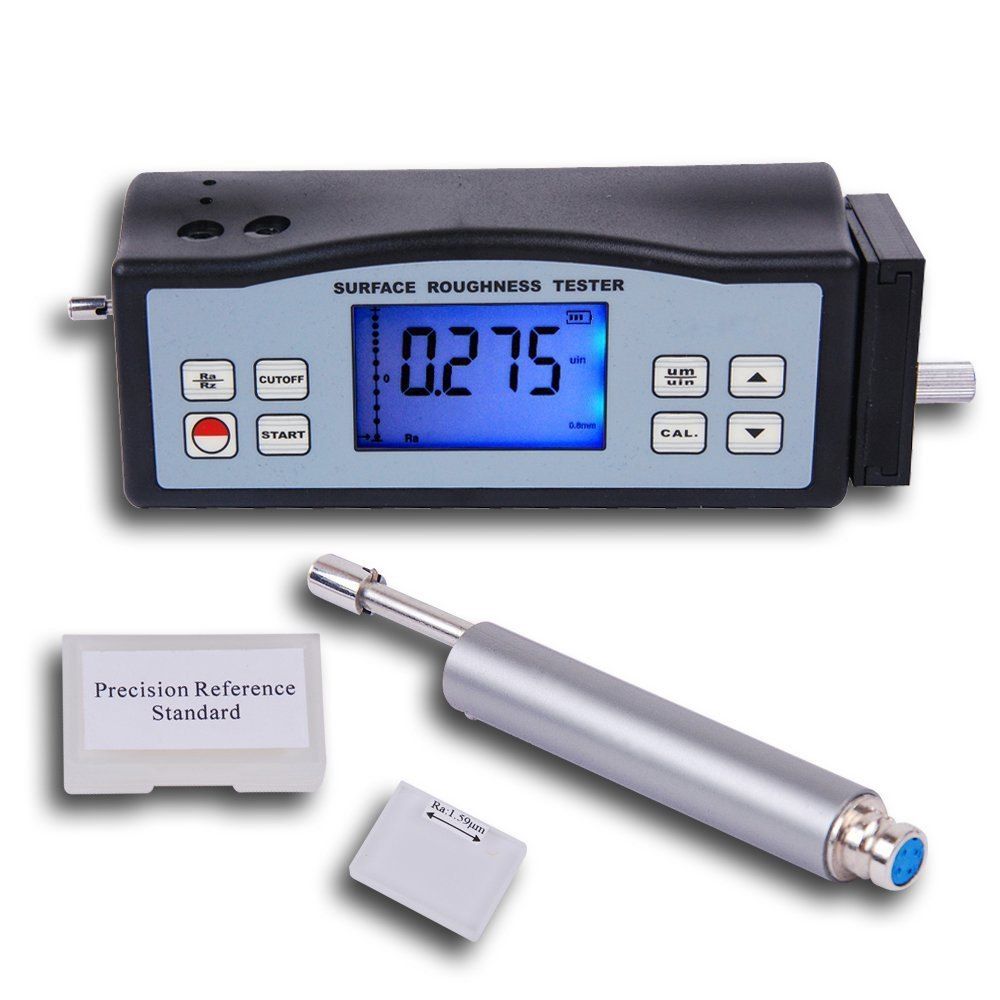

Surface Rougness Tester

About Surface Rougness Tester

• Pocket-size & economically price
• Large measuring range suitable for most materials
• Measures flat, outer cylinder and sloping surface
• Both Ra and Rz parameters in one instrument
• Features external calibration at keyboard
• Standard conform to ISO and DIN
• Rechargeable batteries, work while chargingTechnical Specification


  Model	TIME3100
  Roughness parameter	Ra, Rz
  Tracing length	6mm
  Tracing speed	1.0mm/sec
  Cut-off lengths	0.25mm/0.8mm/2.5mm
  Evaluation length	1.25mm/4.0mm/5.0mm
  Measuring range	Ra: 0.05-10.0 Rz: 0.1-50
  Accuracy	15%
  Repeatability	<12%
  Filter	RC analogue
  Pick-up	Piezoelectric
  Radius and angle of the stylus point	Diamond, Radius : 102.5 Angle: 90( 5or -10)
  Operating temperature	0-40???
  Relative humidity	<80%
  Storing temperature	-25??? -60???
  Vertilation	Grade 3
  Power supply	3.6V/2NiMh-batteries
  Backlight	No
  Charger	DC 9V, 8 12 hours (recharging time)
  Dimensions (LWH)	1257326mm
  Weight	200g

  Standard Delivery

  Main unit
  Protection cover for pickup
  Specimen Ra
  Charger
  TIME certificate
  Instruction manual
  Warranty card
