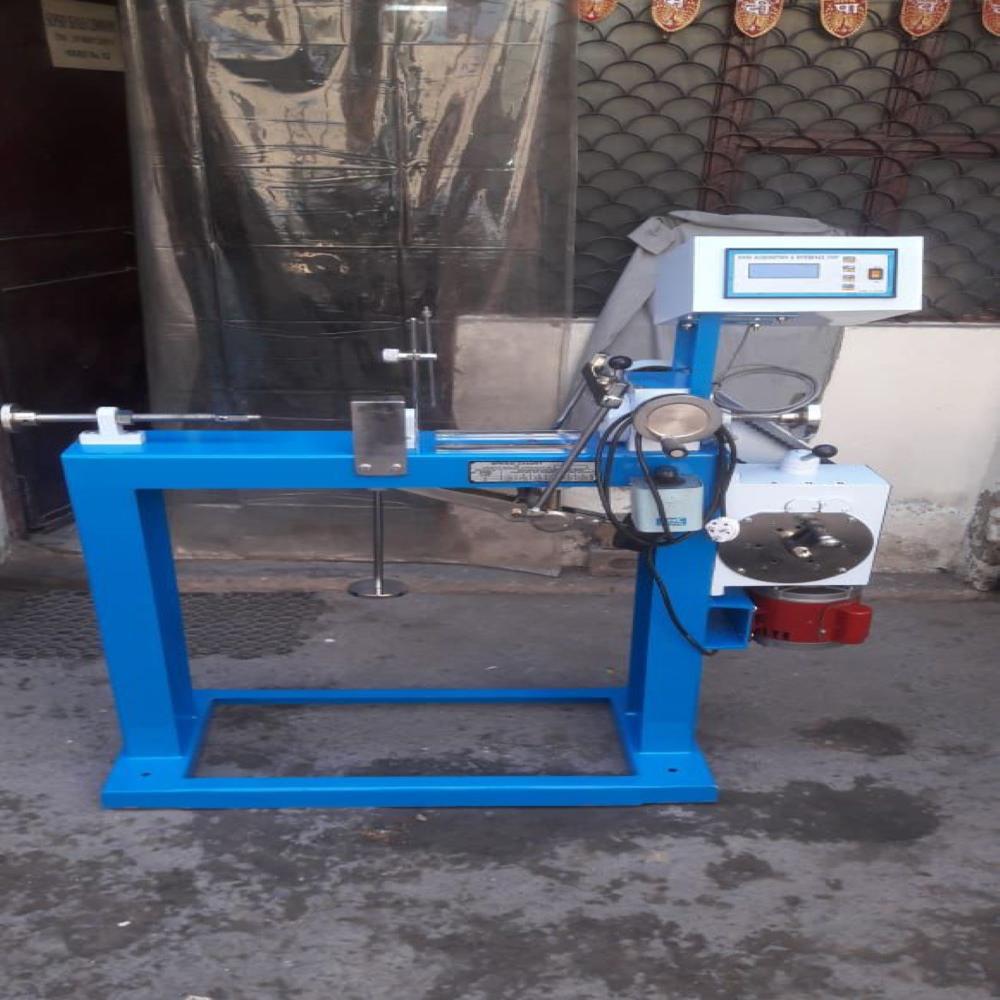

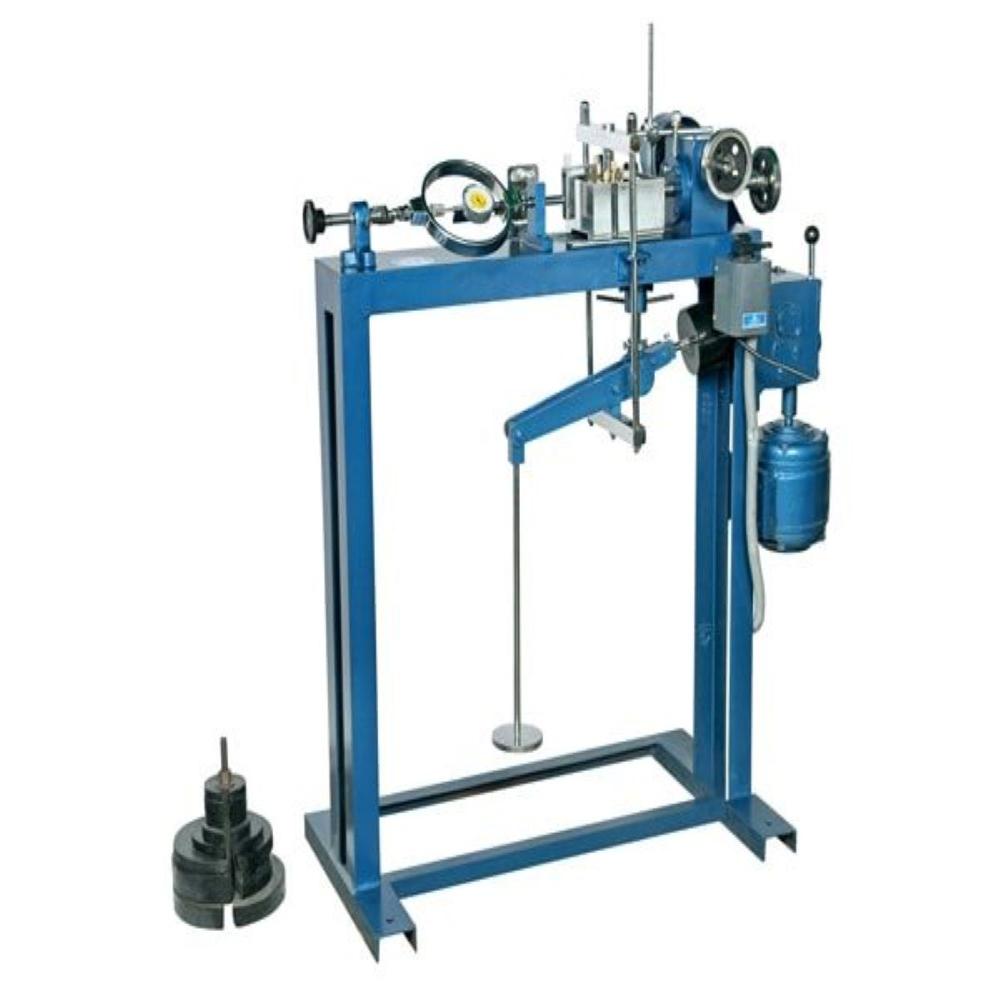

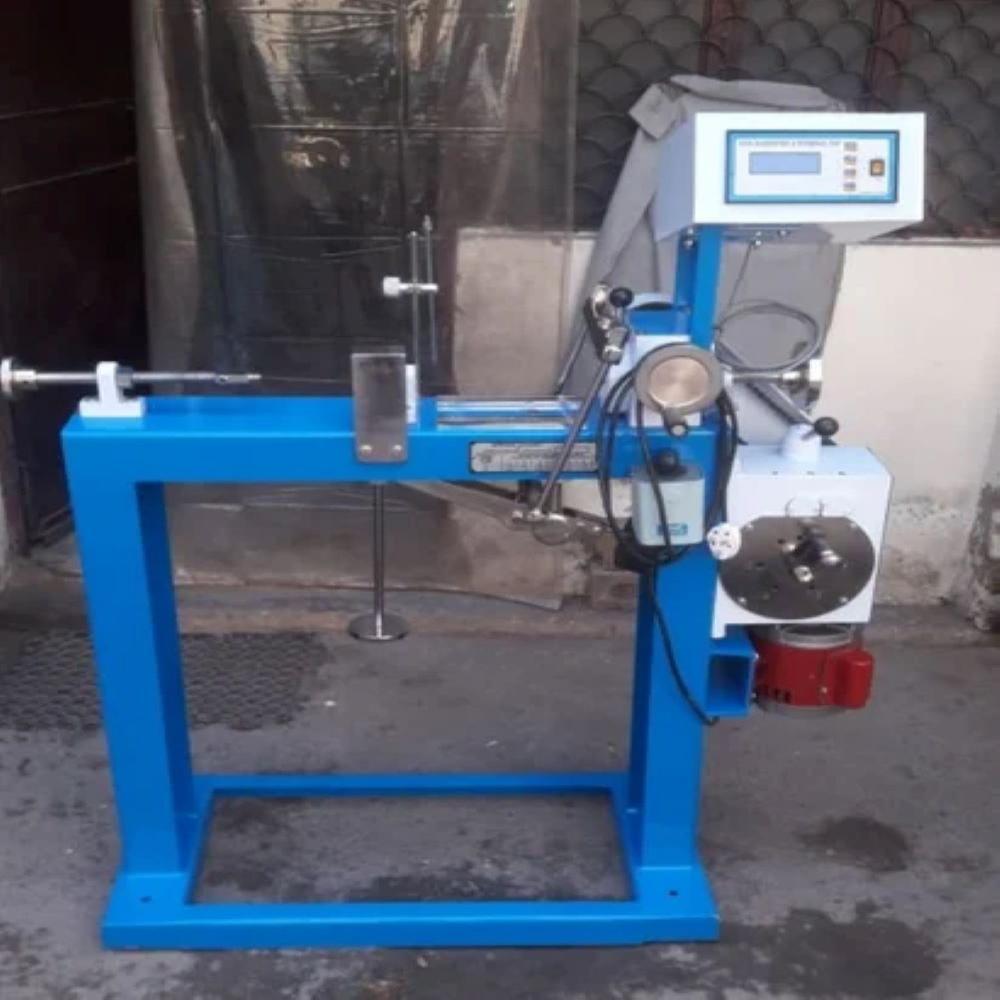

Direct Shear Apparatus

Name: Direct Shear Apparatus
Brand: TAMILNADU ENGINEERING INSTRUMENTS
Price: 65000.0 INR
Availability: InStock

Price 65000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Direct Shear Apparatus Specification

Application
Industrial

Features
Long working life

Power Supply
Manual

Material
Mild Steel

Usage
Laboratory

Display Type
No

Color
Blue

Product Type
Testing

Mounting Type
Floor Mounting

Machine Weight
100 Kilograms (kg)

Control Mode
Manual

Direct Shear Apparatus Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Chennai

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
Karnataka, Kerala, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Nagaland, Tamil Nadu, Telangana, Pondicherry, Uttar Pradesh, Sikkim, West India, North India, East India, Gujarat, Mizoram, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Rajasthan, All India, South India, Central India, Lakshadweep, Meghalaya, Manipur, Andhra Pradesh, Bihar, Delhi, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Tripura, Uttarakhand, West Bengal

About Direct Shear Apparatus

Direct Shear Apparatus (Hand Operated): For determination the direct shear strength of soils on specimen size 60 mm x 60 mm x 25 mm.

Specifications : The apparatus comprises of the following:

Loading Unit:Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8 kg/sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke, the loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

Shear Box Assembly :Comprising Direct Shear box in two halves for a square specimen size 60 x 60 x 25 mm one pair of plain gripper plates, one pair of perforated gripper plates, one pair of porous stones, one top loading pad. Shear box housing: Accommodates the Direct Shear Box assembly. Complete with two ball roller strips.

Specimen Cutter: For cutting 60 x 60 x 25 mm specimen from larger samples.
