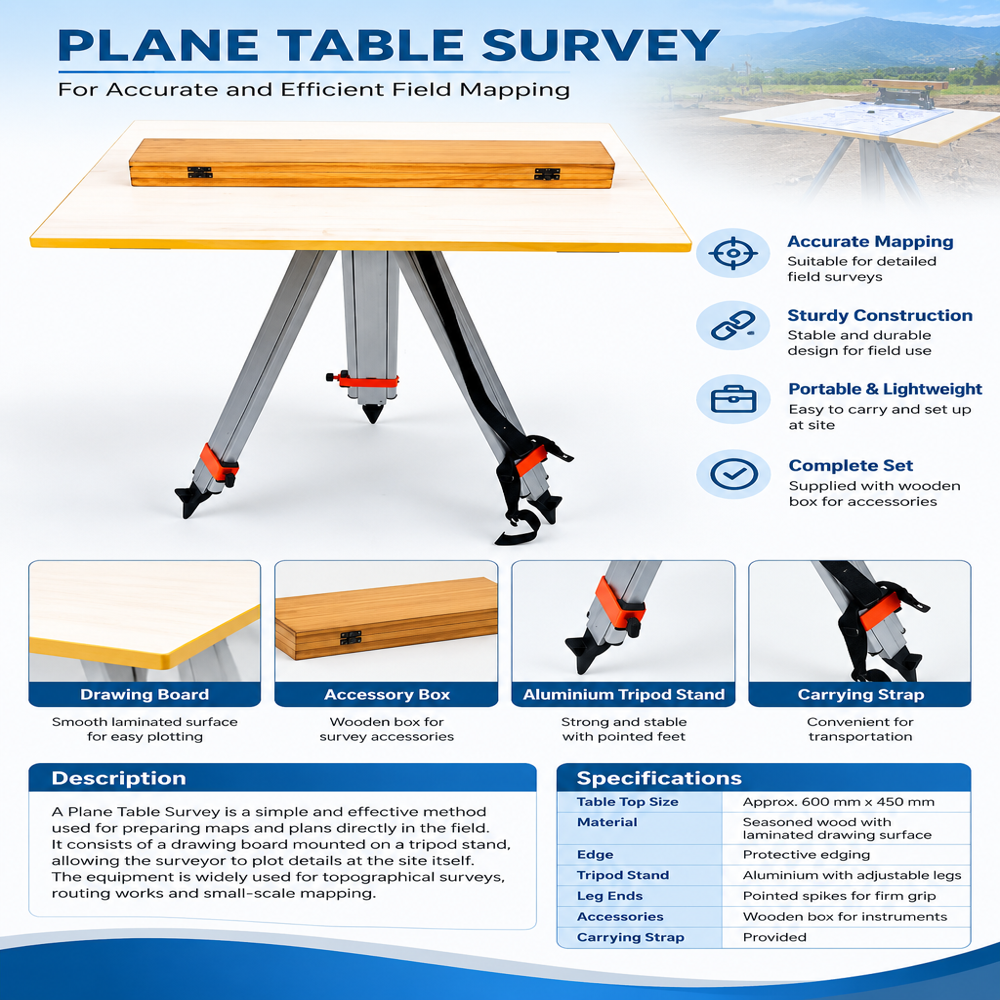

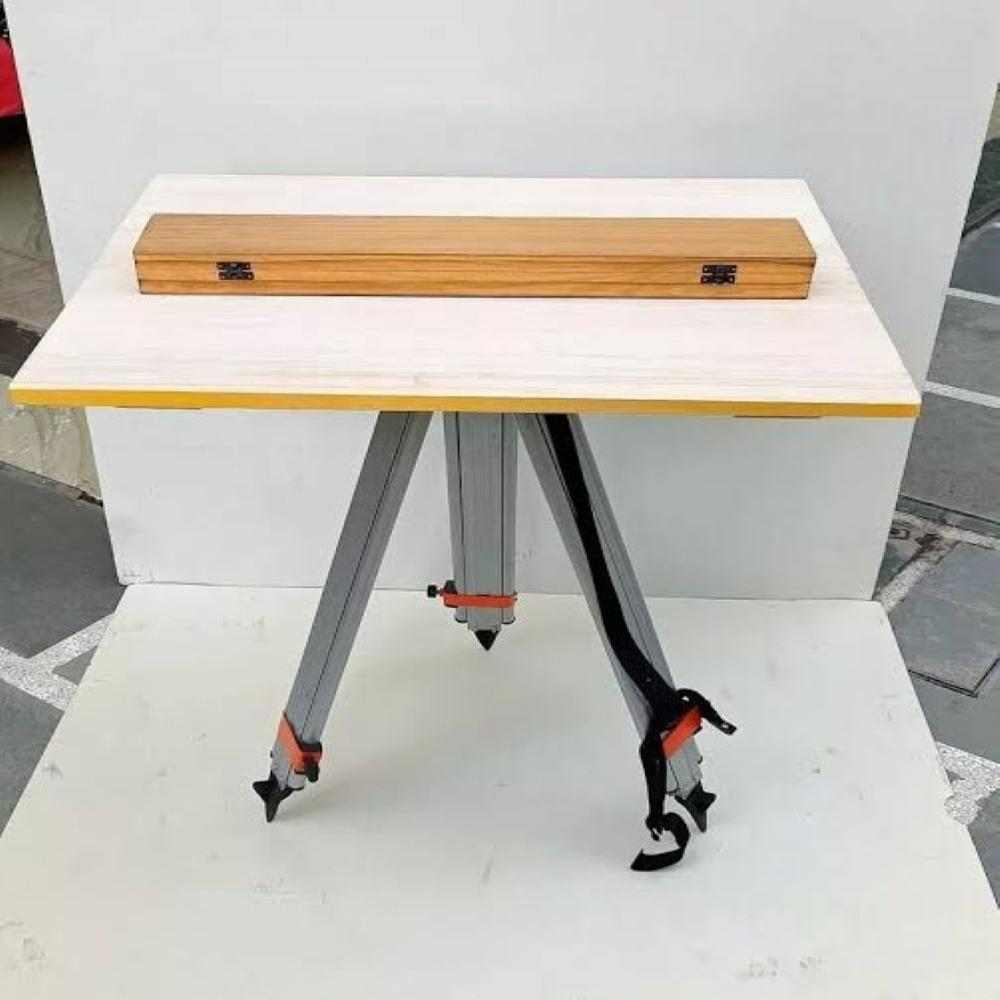

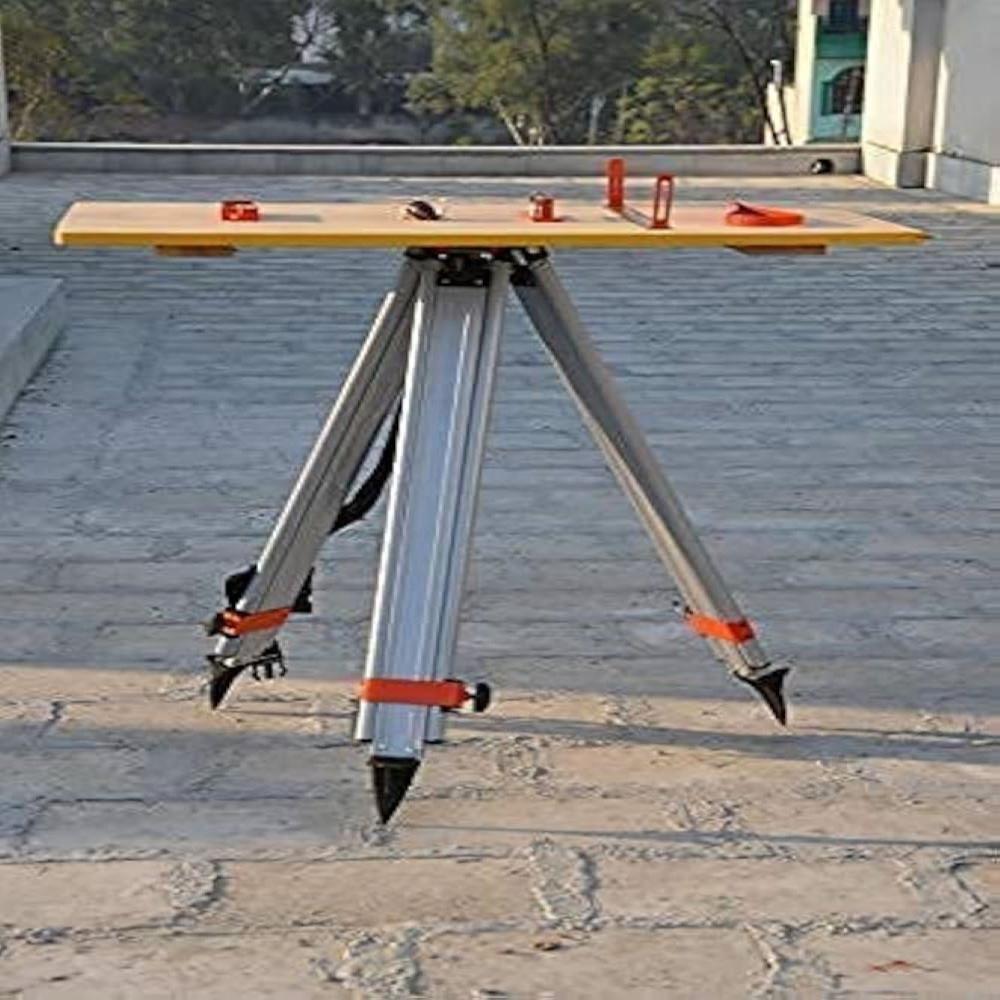

Plane Table Set

Get a Price/Quote

MOQ : 1 Piece

Plane Table Set Specification

Leveling Head
Brass fittings for durability

Finish
Smooth polished wooden board

Tripod Stand
Heavy Duty, extendable legs, aluminum construction

Drawing Board Size
45 cm x 60 cm approx.

Board Thickness
18 mm approx.

Weight
Approx. 4.5 kg

Application
Surveying and field mapping

Carrying Case
Sturdy canvas bag for portability

Accessories Included
Alidade, Plumbing Fork, Spirit Level, Drawing Sheet Clips

Plane Table Set Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Chennai

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Main Domestic Market
Sikkim, Chandigarh, Himachal Pradesh, Manipur, Meghalaya, Andaman and Nicobar Islands, Uttarakhand, Daman and Diu, South India, East India, West India, Assam, Arunachal Pradesh, Bihar, Delhi, Goa, Haryana, Jammu and Kashmir, Jharkhand, Karnataka, Madhya Pradesh, Maharashtra, Mizoram, Nagaland, Odisha, Punjab, Pondicherry, Rajasthan, Tamil Nadu, Telangana, Tripura, West Bengal, Dadra and Nagar Haveli, Lakshadweep, Uttar Pradesh, Gujarat, North India, Andhra Pradesh, Kerala, Central India, Chhattisgarh, All India

About Plane Table Set

Backed by our rich industry experience, we are noted amongst the foremost entities of Plane Table With Tripod. This table is simply a drawing board mounted on tripod so that it can be set up & worked upon in the field. Provided table are suitable for amps preparations well as in the recording of topography. This table is checked by our quality controllers on various quality parameters as per the set quality norms. Our provided Plane Table With Tripod is available at market leading prices.

Engineered for Durability and Stability

The plane table set combines a robust aluminum tripod with a smooth, wooden board, creating a stable platform for exact field measurements. Durable brass fittings in the leveling head offer long-lasting reliability, even under demanding field conditions, ensuring consistent survey results wherever you operate.

Comprehensive Accessory Kit Included

Equipped with essential field mapping accessories like an alidade, plumbing fork, spirit level, and drawing sheet clips, this set streamlines the surveying process. Every accessory is selected to provide efficiency and accuracy, addressing all key needs faced during on-site mapping tasks.

FAQs of Plane Table Set:

Q: How is the plane table set used in surveying and field mapping?

A: The plane table set is positioned at survey sites to provide a stable surface for direct plotting and mapping. With alidade and spirit level included, field professionals can draft maps immediately from their observations, increasing efficiency and accuracy in layout work.

Q: What makes the wooden drawing board and tripod stand suitable for outdoor use?

A: The drawing board is crafted from polished wood with a thickness of approximately 18 mm for stability, while the extendable tripod stand is constructed from heavy-duty, corrosion-resistant aluminum. This combination ensures reliable performance and durability, even in challenging outdoor environments.

Q: When should I use the brass leveling head during setup?

A: The brass leveling head is essential whenever you need to establish a perfectly flat drawing surface. It should be adjusted during initial setup or if the plane table is moved, ensuring your mapping remains precise and undistorted.

Q: Where can this plane table set be purchased or supplied in India?

A: This set is available through a variety of suppliers in India, including dealers, distributors, exporters, manufacturers, producers, retailers, service providers, and wholesalers. It can be sourced directly for both small and bulk requirements.

Q: What benefits does the included carrying case provide?

A: The sturdy canvas carrying bag protects the set from damage during transit, organizes all components, and makes it easy to transport the 4.5 kg kit between field locations, enhancing both convenience and equipment longevity.

Q: What accessories are provided and how do they assist in the surveying process?

A: Accessories include an alidade for sightings and plotting lines, a plumbing fork for vertical alignment, a spirit level for accurate leveling, and drawing sheet clips to secure paper. Together, they contribute to seamless, accurate mappings.
