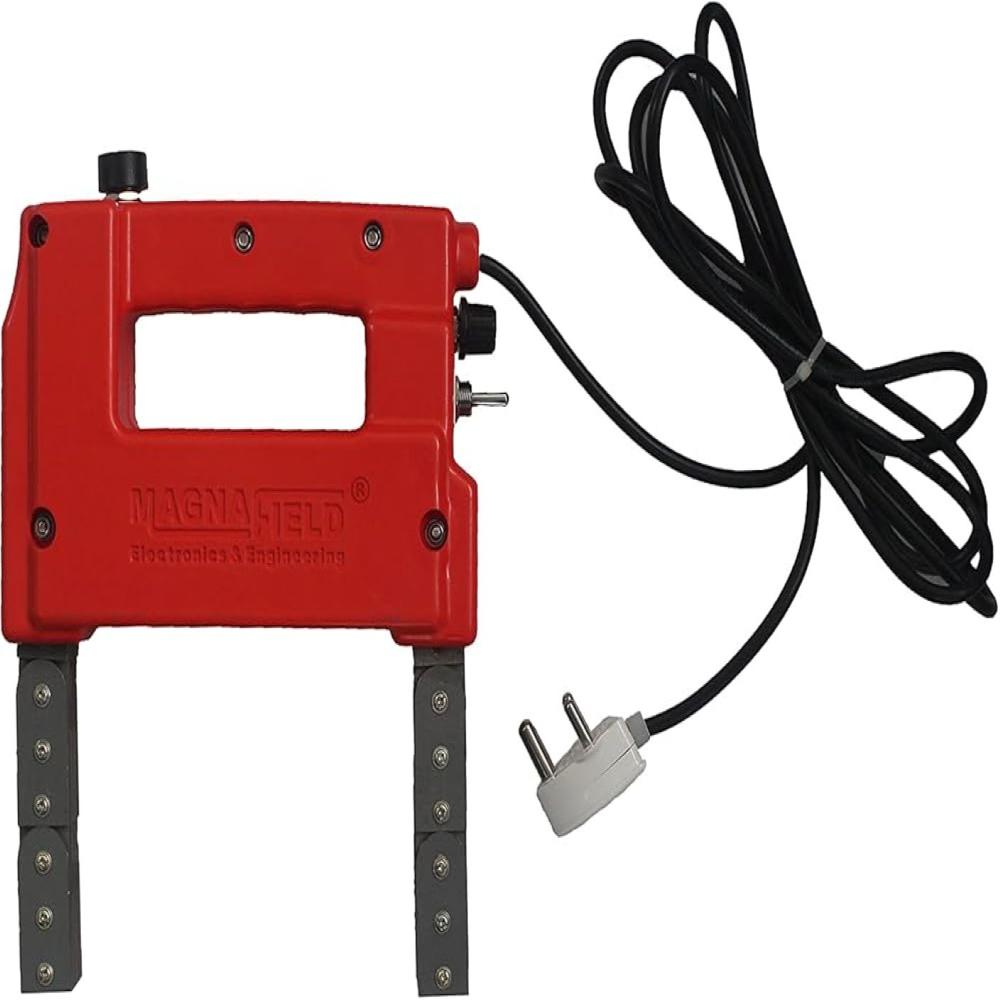

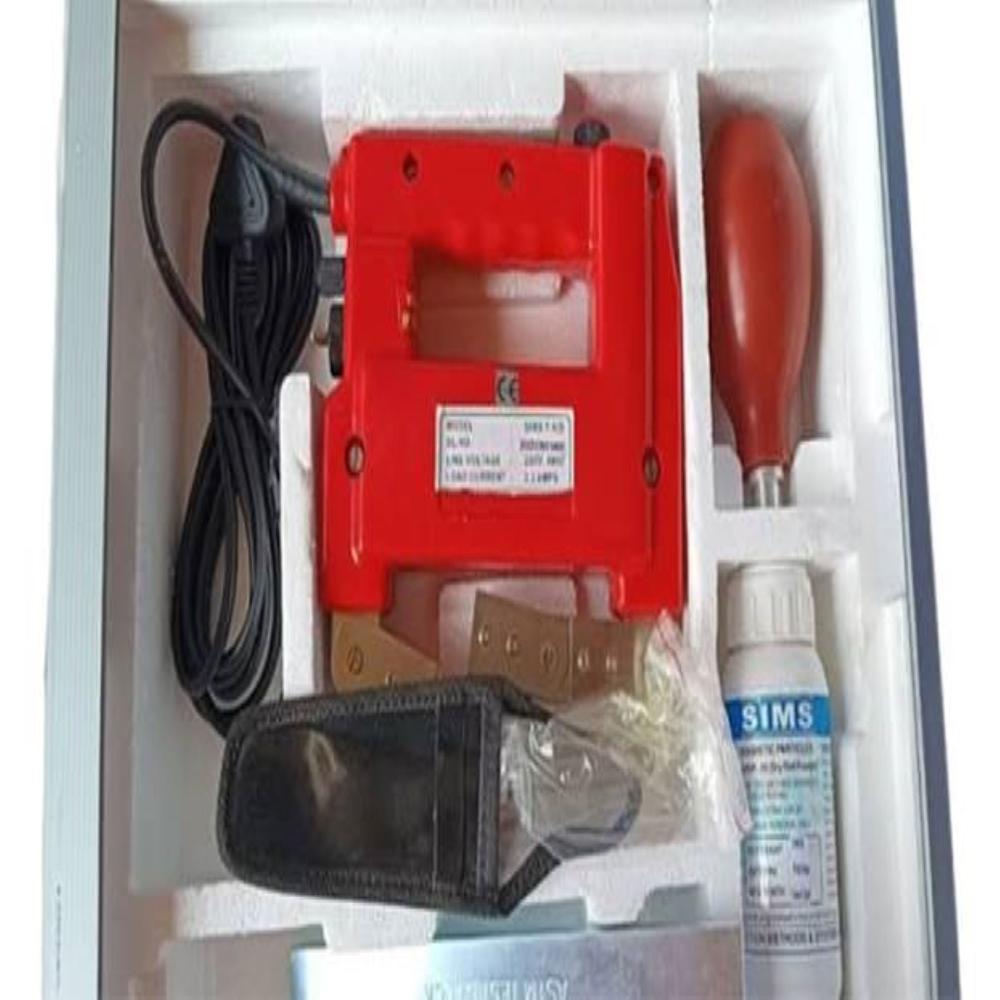

Magnetic Particle Test (Yoke Method)

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

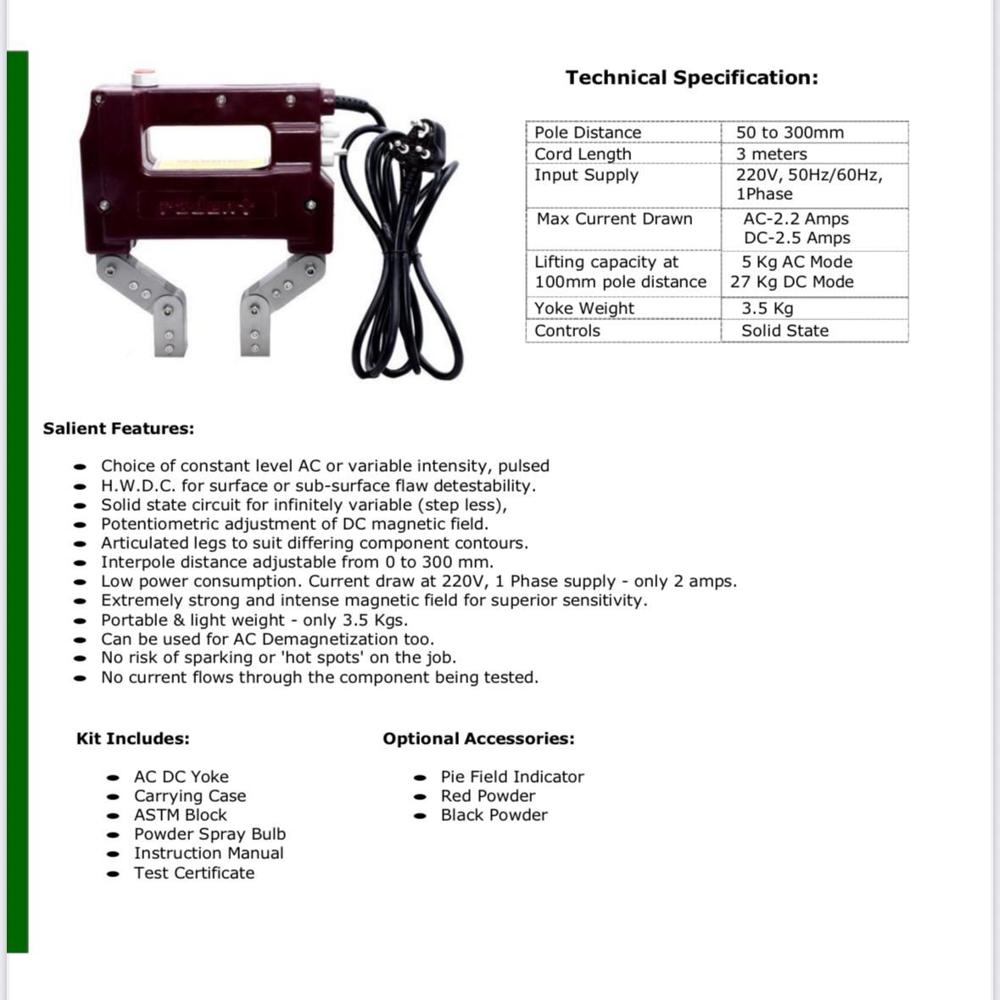

Magnetic Particle Test (Yoke Method) Specification

Sensor Type
No

Color
Red

Signal Type
No

Usage
Crack Detector

Material
Metal

Product Type
Yoke Method

Weight
2 Kilograms (kg)

Display Type
Analog Only

Width
100 Millimeter (mm)

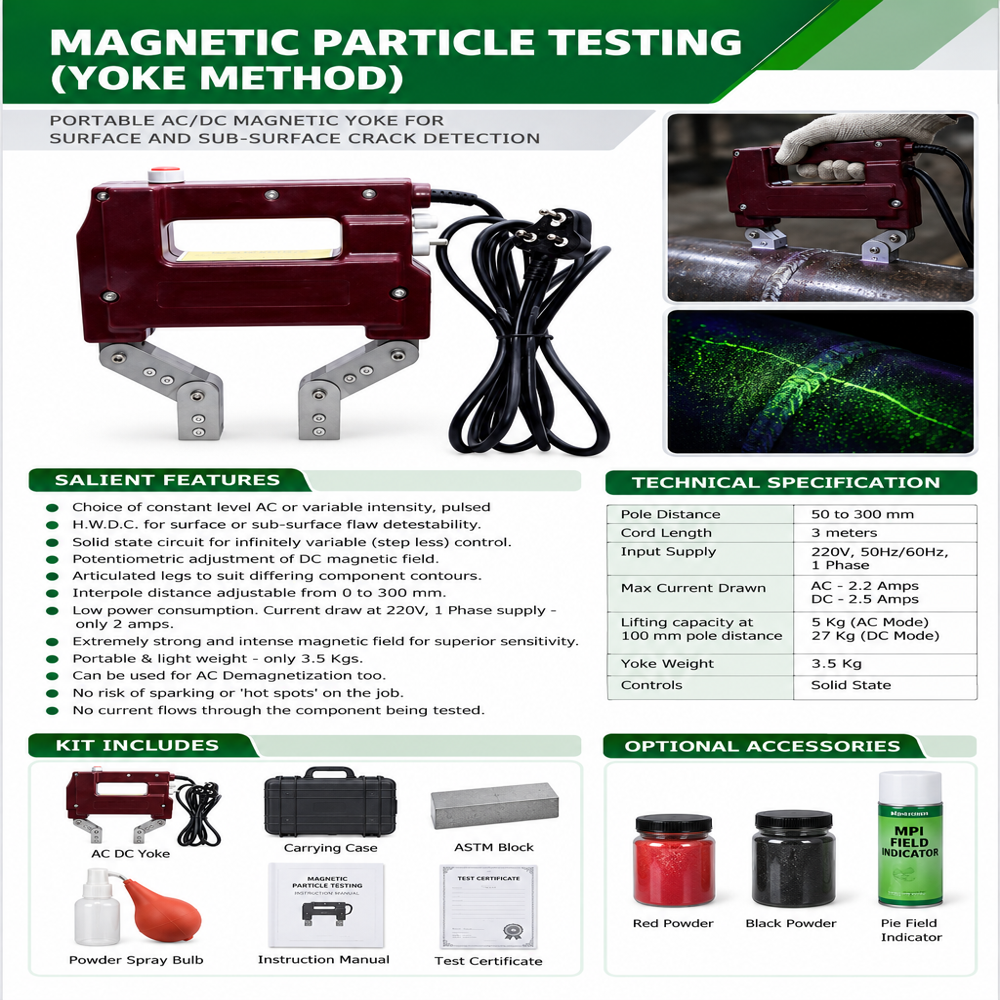

About Magnetic Particle Test (Yoke Method)

Meticulously designed, our dual magnetization yoke and portable MPI unit (AC / HWDC Yoke) and MPI Portable Unit are high in performance and are easy to operate. With strong and rugged construction, these are suitable for continuous operation.

Following are some of unique features of dual magnetization yoke:

Delivers AC for surface
HWDC for subsurface flaw detection
Handy
Light Weight
Safe for operator
Lifting capacity 27 kgs in DC, 5 kgs in AC mode. Portable MPI Units

The portable MPI units offered by us are intricately designed for continuous operation and efficiently yields accurate results. Based on latest technology, our units are available in various models.

Some of the technical specifications of our range encompass of the following:

Specifications of portable MPI units:

Models available: 1000, 1500 & 2000 Amps rating
Current outputs: AC and HWDC
Heavy duty cycle: 2 min. ON & 2 min. Off
Auto AC Decay Demagnetization Facility
Input Voltage: 230 V / 415 V
Thyristorise step less solid-state control
